3hp Compressor Motor & Pump DEAL

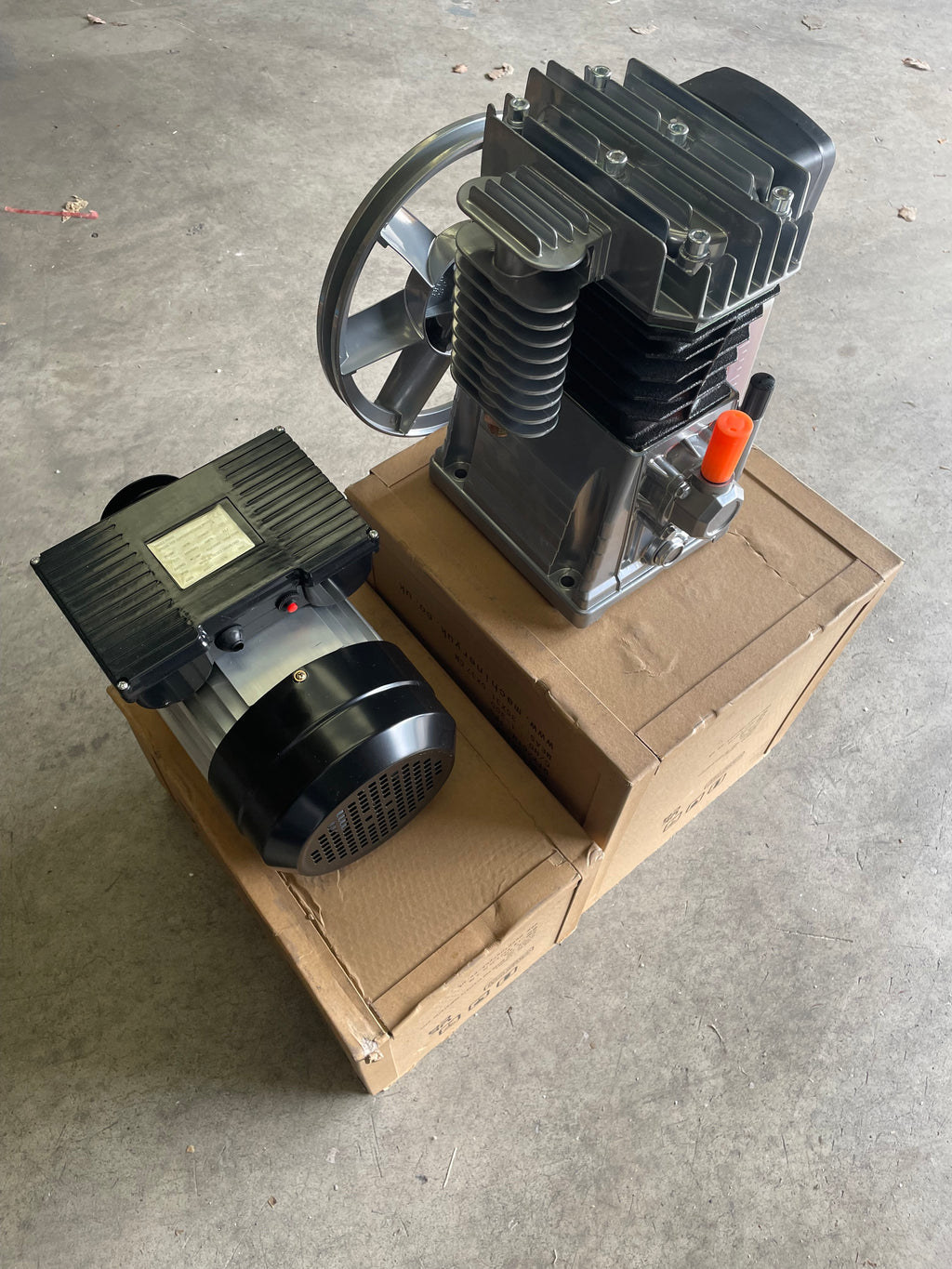

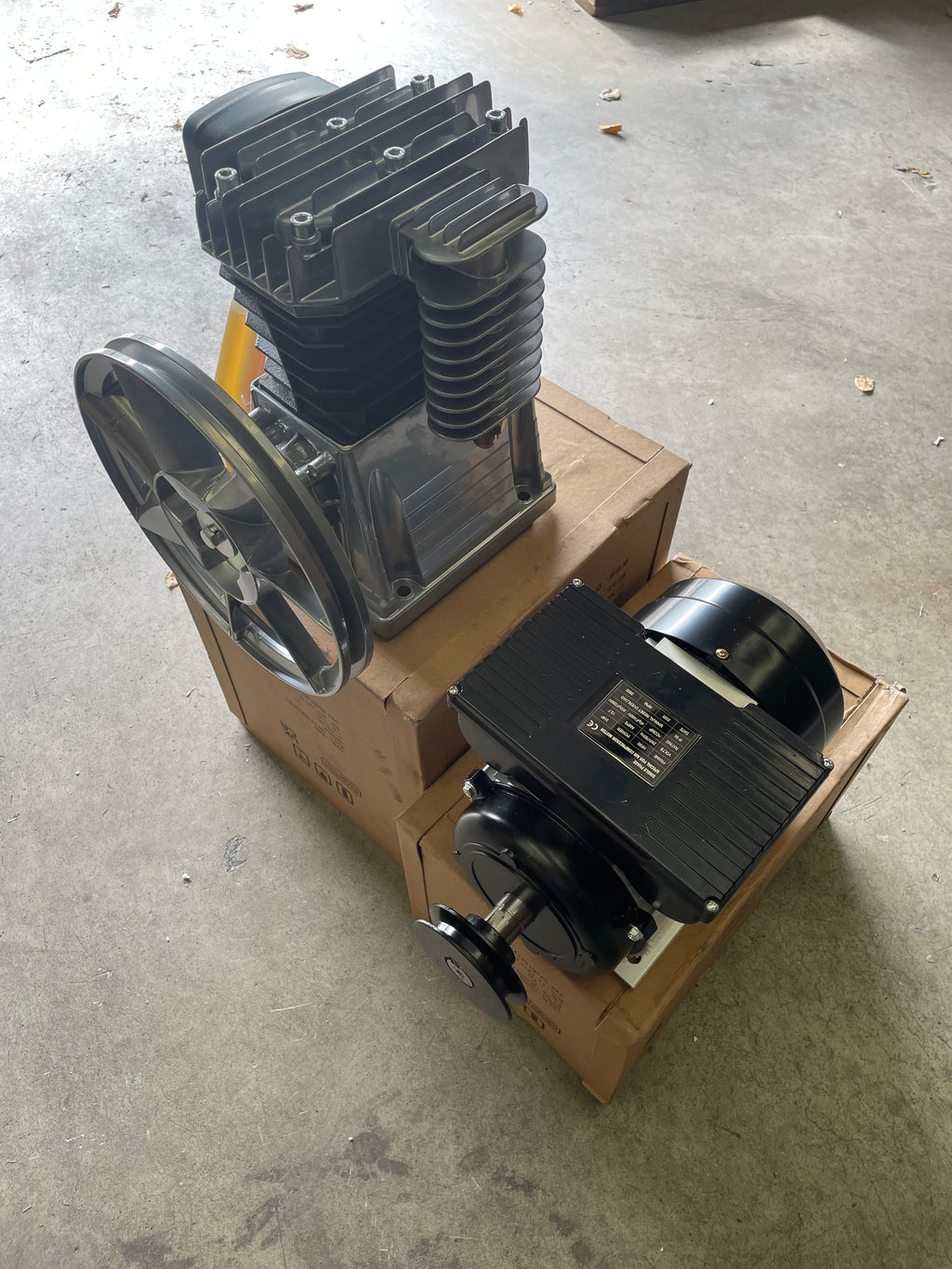

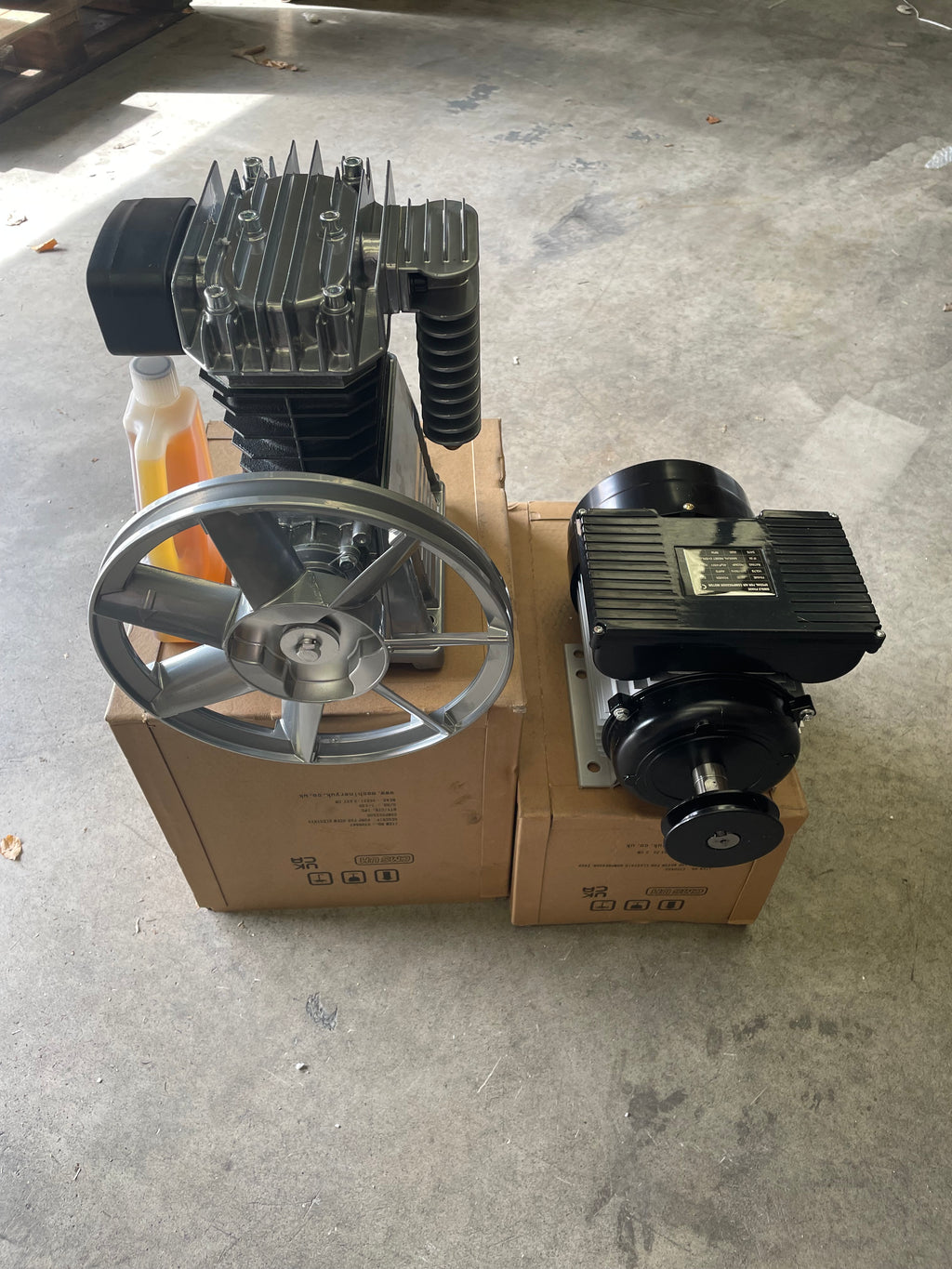

3HP Compressor Motor & Electric Compressor Pump – Duo Deal

Get everything you need to build or restore a high-performance air compressor system. This duo deal bundles a 3HP single-phase electric motor with a heavy-duty electric compressor pump head — both matched for compatibility and ready for workshop, industrial, or site use.

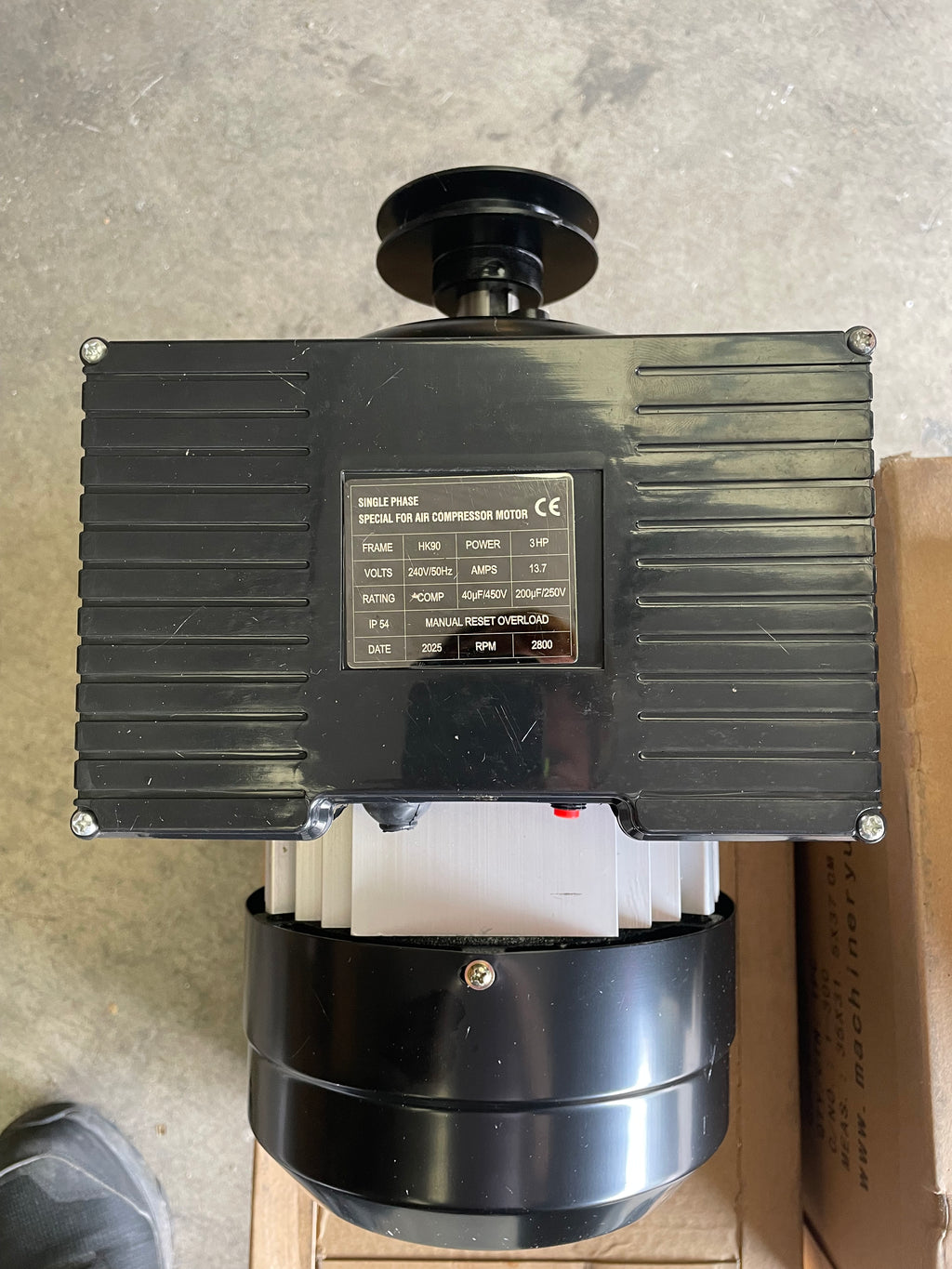

3HP Electric Compressor Motor

A reliable single-phase electric motor designed for use with air compressors, pumps, machinery, and conveyors. IP54-rated for protection against dust and water ingress, making it well-suited to industrial and workshop environments.

• Power: 3HP
• Speed: 2,800 RPM
• Voltage: 220–240V / 50Hz, Single Phase
• Current Draw: 14A
• Shaft Diameter: 24mm
• Shaft Length: 54mm
• Pulley Diameter: 85mm
• IP Rating: IP54 (dust and splash protected)
• Overload Protection: Manual reset

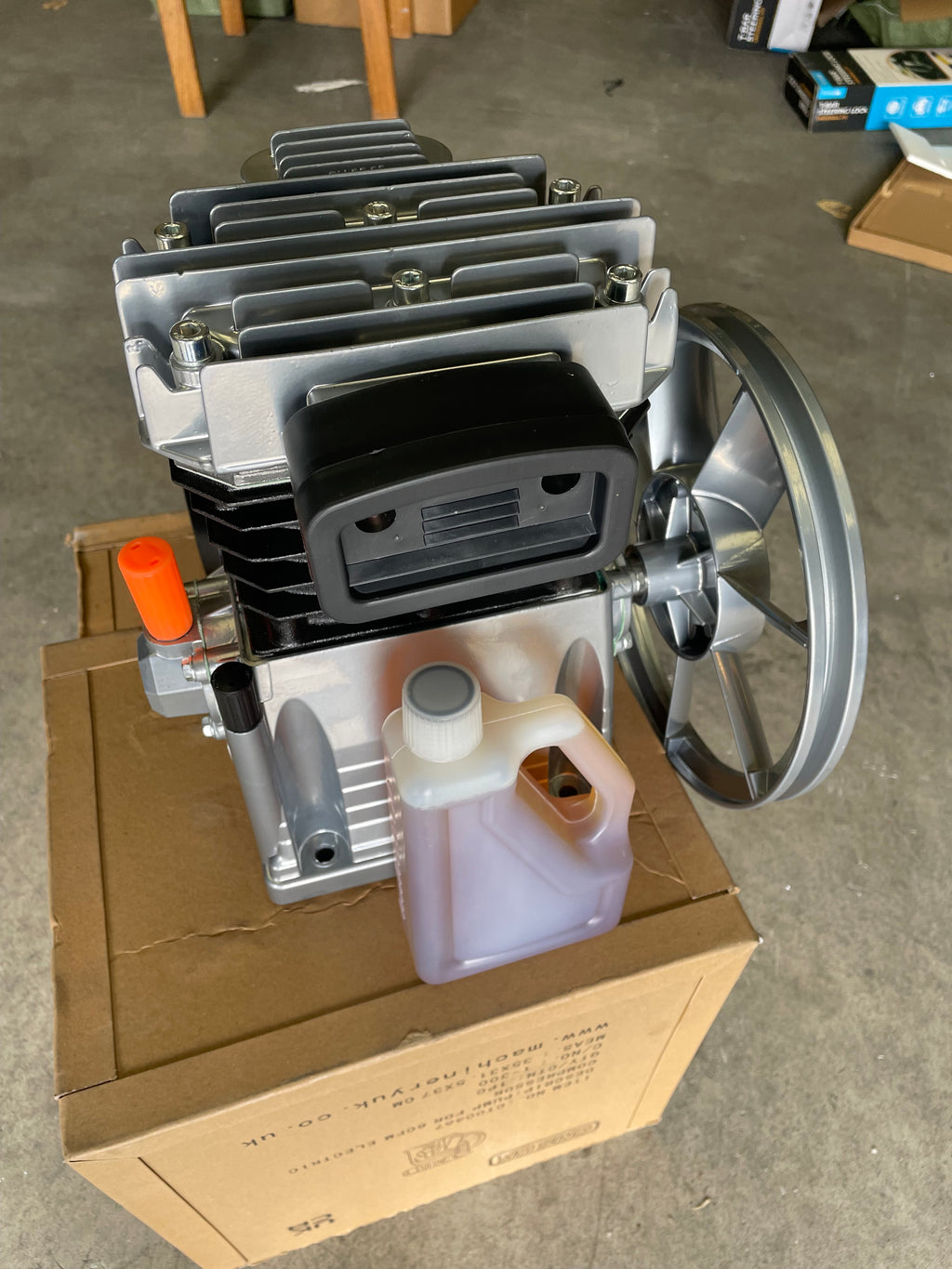

Electric Compressor Pump Head

A heavy-duty compressor pump head suitable for use with large-capacity air compressor tanks. Designed for high-flow, high-pressure applications in workshops and industrial settings.

• Power: 3HP
• Speed: 2,900 RPM
• Max Pressure: 150 PSI
• Flow Rate: 596 L/min
• Tank Capacity: 200 Ltr

Why Buy as a Duo?

• Motor and pump matched for compatibility straight out of the box
• High flow rate of 596 L/min for fast tank fill times
• 150 PSI maximum pressure for demanding air tool applications
• IP54-rated motor for reliable performance in dusty, industrial environments
• Ideal for building a new compressor system or replacing worn components

Compatible with 200 litre compressor tanks. Please verify connector and pulley compatibility before installation.
