5.5hp 198cc Petrol Engine 20mm inch Shaft

Name: 5.5hp 198cc Petrol Engine 20mm inch Shaft
Brand: Machinery UK
Price: 114.99 GBP
Availability: InStock

£114.99

5.5hp 198cc Petrol Engine – 20mm Shaft

A reliable and versatile 5.5hp petrol engine with a 20mm shaft, suitable for use across a wide range of construction and site machinery including compactors, water pumps, compressors, and generators. A popular direct replacement engine for equipment using a standard 20mm shaft fitment.

Key Specifications

Power: 5.5HP
Displacement: 196cc
Bore x Stroke: 68 x 54mm
Compression Ratio: 8.5:1
Max Power Output: 4.8kW @ 3,600 rpm
Constant Power Output: 3.8kW @ 3,600 rpm
Max Torque: 11 N·m @ 2,500 rpm
Shaft Diameter: 20mm
Fuel Tank Capacity: 3.6L
Oil Capacity: 0.6L
Weight: 17kg

Features

20mm shaft for compatibility with a wide range of machinery and equipment
High power-to-weight ratio for demanding site applications
Suitable as a direct replacement engine for compactors, pumps, compressors, and generators
Reliable petrol-powered operation — no mains electricity required

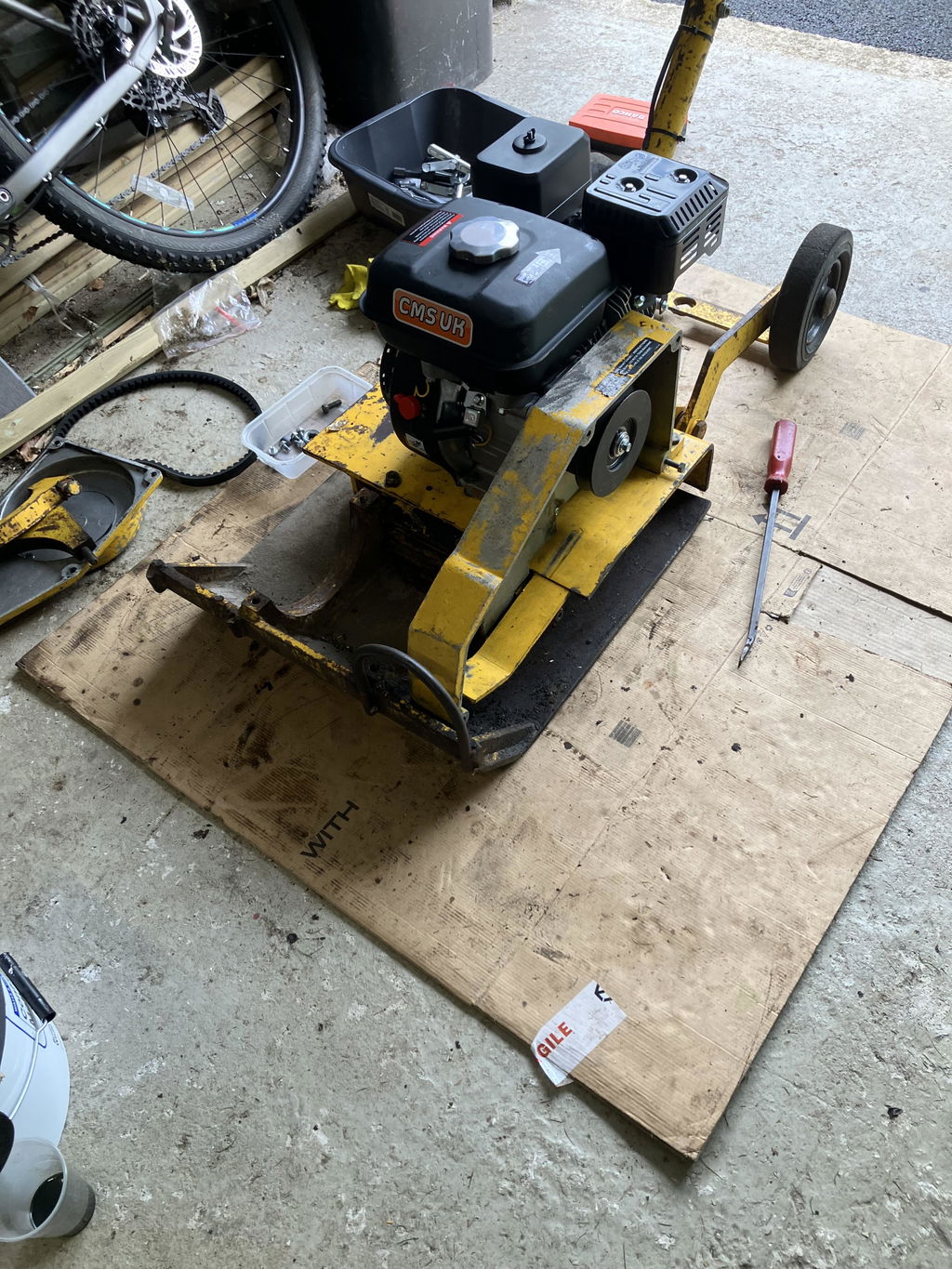

I bought the engine to replace a Honda GX140 on a wacker plate. I placed the order and collected the engine from Clitheroe. I also bought a new clutch and v-belt. The swap over was very straight forward and the new engine started on the second pull. The engine has run flawlessly since.
I wish I replaced the engine earlier as the old engine was difficult to start and reluctant to run at full power despite carburettor cleans and exchanges.
